The first place a backsplash shows its thickness is rarely the field of tile. It shows at the outlet whose cover plate no longer sits flat, at the exposed end beside the range that suddenly needs a trim piece, at the window casing that was never meant to sit behind anything. A thin backsplash tile keeps those moments quiet, and on a kitchen wall that is most of what thickness decides.
Here is how thick each common backsplash material is once it is on the wall, where the extra fraction of an inch turns into work, and what changes when tile goes up on an adhesive backing with no mortar behind it.
Why a thin backsplash tile is easier to live with
A backsplash occupies the most crowded strip in the kitchen. The countertop runs along its bottom edge, the wall cabinets close off the top, and receptacles, switches, sometimes a window and often a cabinet end panel interrupt it. All of those were set to the plane of the bare wall. Whatever you add moves the finished face forward by the thickness of the tile plus whatever holds it there.
On a wide, open wall that barely registers. Here it registers at every interruption. A thicker build means deeper cuts around boxes, more exposed edge where the run stops and a better chance that something nearby ends up recessed behind the new surface. Thin tile will not improve a weak design. It simply leaves fewer of those problems to solve.
How thick is backsplash tile? Material by material
These are typical figures for the tile alone. Products vary, so the spec sheet of the tile you are buying is the final word.
- Ceramic wall tile and subway tile. A standard 3 by 6 inch ceramic subway tile usually measures about 5/16 inch (8 mm). Most ceramic wall tile falls somewhere between 1/4 and 3/8 inch.
- Glass tile. Two groups here. Glass mosaics are often around 4 mm, roughly 1/8 inch, while larger glass subway tiles commonly come in near 8 mm.
- Natural stone tile. Marble and travertine in 12 by 12 inch formats and smaller typically run 3/8 inch, about 10 mm, though some products are thicker.
- Gauged porcelain panels. Among the thinnest mortared options. The industry standard puts this category at 3.5 to 6.5 mm, with the thinnest class (under 5 mm) rated for walls only. The panels are large, and a separate installation standard covers them, often with mortar applied to both the panel back and the wall.
- Quartz or stone slab. Slabs come in 2 cm (about 3/4 inch) and 3 cm (about 1 1/4 inch). The 2 cm option is often picked for full-height backsplashes because it is lighter and carries no load.
- Peel and stick vinyl or gel tiles. No standard exists. Listed products range from roughly 1 to just over 3 mm.
Those numbers only tell half the story, because every mortared tile on the list arrives with a second layer behind it.
The layer nobody measures: the setting bed
Ceramic, glass, stone and porcelain are all set in thinset mortar. The American installation standard asks for at least 3/32 inch (about 2 mm) of mortar between tile and wall once the tile is pressed in, along with minimum coverage targets. A 1/4 inch square-notch trowel is a common pick for subway tile, and smaller V-notch trowels are often used for mosaics.
Add that bed to the tile and a "5/16 inch" subway tile becomes a finished build a little past 3/8 inch, more with a deeper trowel or an uneven wall. Stone tile lands near half an inch. This is the figure that matters at an outlet or a casing, and it is the one nobody prints on the box.
Where thickness shows on a finished backsplash
Outlets and switches
Electrical boxes are installed flush with the drywall. Under the National Electrical Code (section 314.20), a box may sit no more than 1/4 inch behind a noncombustible finish such as tile, and must be flush in a combustible surface such as wood. A mortared backsplash can push the finished face past that limit, and the standard fix is a listed box extender, ideally fitted before the tile goes up so cuts can be sized around it. Turn the circuit off at the breaker before working near any box, and check which code edition your area has adopted.
The countertop line
Where the backsplash meets the counter, a thicker tile leaves a deeper reveal that has to be sealed with a flexible caulk joint, and it eats a little counter depth along the wall. It rarely matters on its own, but on a narrow counter with a slab splash already in place, every fraction counts.
Exposed ends, windows and cabinet sides
Where a run stops in open air, the cut edge of the tile becomes part of the design. Metal and PVC edge trims are sold by tile thickness for exactly this reason: a trim sized for 8 mm will not finish a 10 mm stone. Window casings and cabinet end panels are the other pinch point, since a thick build can end up standing nearly flush with trim that was meant to frame the wall. If you have a wall-mounted faucet, check its valve too. These valves are set for a stated range of finished-wall depth, a detail we cover in the vanity backsplash guide.
Tiling over tile doubles the build
Mortaring new tile over an old backsplash adds the full thickness of the new tile plus its mortar to what is already there. That is the scenario where outlets most often end up too deep and where every termination needs a trim, because the old edge and the new one stack. It is also why many renovators either remove the old tile first or reach for a much thinner covering.
An adhesive-backed surface is the thinner covering. If the existing tile is sound, clean and smooth, without heavy texture or open grout lines, our guide to putting metal tile over existing tile walks through the prep, including filling deep joints flush first.
Thin metal backsplash: what an adhesive-backed aluminum tile adds

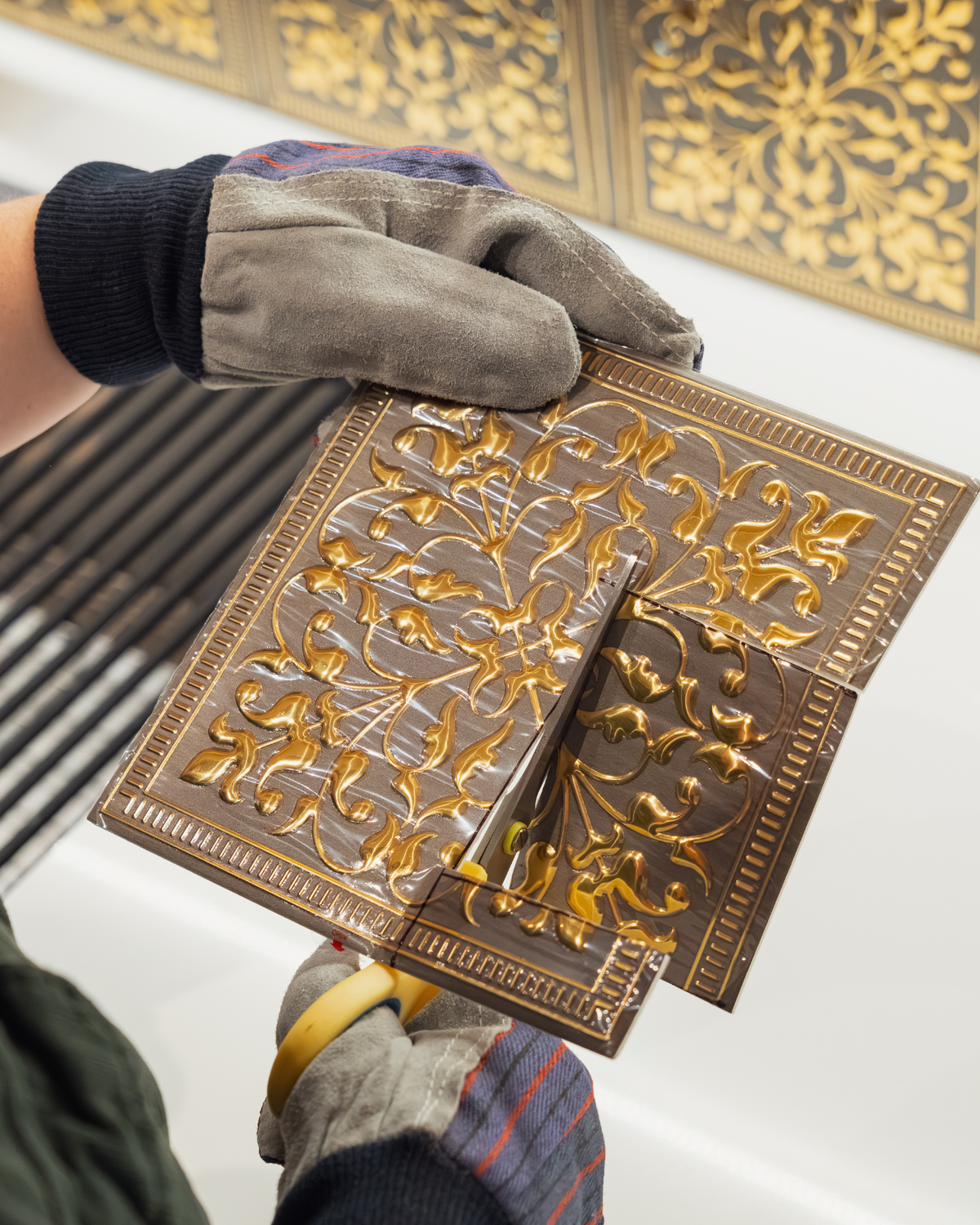

A peel and stick metal tile removes the setting bed entirely. There is no mortar to trowel, nothing to grout and no sealer to apply, so the only material in front of the wall is the tile and its adhesive backing. Each WallWear tile is a square of water-resistant aluminum eight inches on a side, and a pack of ten covers roughly 4.44 square feet, per the product page. They are best suited to smooth painted walls, and the product page pairs its promise of no special tools with a practical note: edges and cutouts are trimmed with an ordinary box cutter or a pair of scissors.
That changes the edge conversation. A thin aluminum sheet cut with scissors leaves a crisp edge that can be butted against a cabinet or casing, and a bead of color-matched caulk tidies it where it meets the counter. The cutting guide covers outlets and corners in detail, and wearing gloves is wise because cut metal edges are sharp.
One figure we have not published is an exact thickness in millimeters, and the embossed relief stands slightly proud of the flat sheet. So measure the setback at each box once the tiles are up instead of assuming. With no mortar bed, the added depth is a fraction of a mortared build, but the code limit is what counts, and an extender is inexpensive.
Thin does not have to mean flat. A pattern like Rustic Farmhouse, gold ornament on a soft green ground, or the silvered Silver Fleur has the dimensional relief of embossed metal while sitting closer to the wall than any mortared tile. Patina Copper carries a deep copper color worn down to an aged patina, set on aluminum. When you are ready to start, follow our step-by-step installation guide.
Frequently Asked Questions
How thick is subway tile?
A standard 3 by 6 inch ceramic subway tile is typically about 5/16 inch, or 8 mm, thick, and most ceramic wall tile sits between 1/4 and 3/8 inch. Glass subway tile in the same size is often similar. Remember to add the thinset bed behind it, at least 3/32 inch, when you work out the finished depth at outlets and trims.
How thick is a quartz backsplash?
Quartz slabs are made in 2 cm and 3 cm thicknesses, roughly 3/4 inch and 1 1/4 inch. For a full-height backsplash, 2 cm is a frequent choice because the slab is lighter and carries no load. For a short splash, ask your fabricator which thickness it will be cut from before you plan outlets or trim.
How thick is peel and stick tile?
There is no standard. Vinyl and gel peel and stick tiles on the market range from about 1 mm to a little over 3 mm. Aluminum peel and stick tile is a thin metal sheet with an adhesive back and no mortar bed, though the embossed pattern adds some relief. Check the product page or ask the maker if you need an exact figure.
How thick should grout lines be on a backsplash?
The installation standard sets 1/16 inch as the absolute minimum and ties the right width to how much the tiles vary in size. Backsplash joints are typically between 1/16 and 1/8 inch, with tighter joints for very consistent tile. Peel and stick metal tile is butted edge to edge and needs no grout at all, so the question does not apply there.
Do you need outlet extenders for a thin backsplash?
It depends on the finished depth. The National Electrical Code lets a box sit up to 1/4 inch behind a noncombustible finish such as tile, and requires it flush with combustible surfaces. Mortared tile can exceed that, while a thin adhesive-backed tile may not. Measure each box after installation, add a listed extender if needed, and follow your local code.
